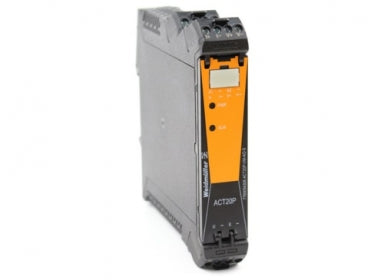

ACT20P-VM-AO-S Voltage Signal Conditioner (AC/DC)
ACT20P-VM-AO-S Voltage Signal Conditioner (AC/DC)

ACT20P-VM-AO-S Voltage Signal Conditioner (AC/DC)

£205.00
£205.00
(-0%)
(Price excludes VAT)
AC & DC Voltage Signal Conditioner, up to 300Vac, 440Vdc in; 0-10V or 0/4 - 20 mA output.
Model: ACT20P-VM-AO-S
Subtotal: £205.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

ACT20P-VM-AO-S Voltage Signal Conditioner (AC/DC)

ACT20P-VM-AO-S Voltage Signal Conditioner (AC/DC)

£205.00
ACT20P-VM-AO-S Voltage Signal Conditioner (AC/DC)

ACT20P-VM-AO-S Voltage Signal Conditioner (AC/DC)

£205.00
Description

Signal Conditioner/Isolator with a wide variety of selectable input ranges for AC & DC Voltages (0…30 V DC, 0…60 V DC, 0…150 V DC, 0…300 V DC, 0…440 V DC, 0…660 V DC, 0…60 V AC, 0…144 V AC, 0…300 V AC, 0…440 V AC) and 0-10V or 0/4-20mA output.

Features
Specifications
Number of inputs 1
Input signal UDC, UACEffective value (sinusoidal only) 40-60 Hz
Input voltage 0…30 V DC, 0…60 V DC, 0…150 V DC, 0…300 V DC, 0…440 V DC, 0…660 V DC, 0…60 V AC, 0…144 V AC, 0…300 V AC, 0…440 V AC
Input resistance 1 MΩ±5%
Number of outputs 1
Output voltage, note 0...10 V
Output current 0(4)...20 mA
load impedance voltage ≥ 10 kΩ
Load impedance current ≤ 500 Ω



Width 22.5 mm
Width (inches) 0.886 inch
Height 119.2 mm
Height (inches) 4.693 inch
Depth 114.3 mm
Depth (inches) 4.5 inch
Net weight 110 g



Technical
Applications
