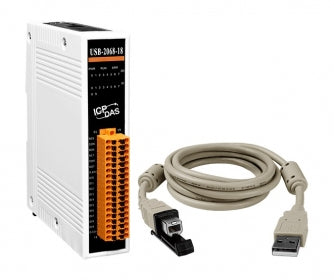

USB-2068-18 USB I/O Module with 10-ch DI and 8-ch Signal Relay

£187.00; £187.00; (-0%)
Unit price: per

(Price excludes VAT)

USB I/O Module with 10-ch DI (Dry, Wet) and 8-ch Signal Relay. Includes 1.5M USB Cable

Model: USB-2068-18

Quantity:

Subtotal: £187.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

USB-2068-18 USB I/O Module with 10-ch DI and 8-ch Signal Relay

£187.00

Quantity:

USB-2068-18 USB I/O Module with 10-ch DI and 8-ch Signal Relay

£187.00

Description
Features
Specifications
Technical
Applications

Description

The USB-2068-18 is a full-speed USB I/O device with 8-ch Form C relay output and 10-ch digital input channels. All digital input channels can be used as 32-bit counters. In addition, the digital input channels are sink/source type and dry/wet contact selectable via wire connections. The USB-2068-18 also offers 18 LED indicators that can be used to monitor the status of the digital input and Signal output. Dual watchdog function that provided with configurable power-on and safe values ensures the device operates continuously, even in harsh environments.

Also provided is an API library and demos with source code for Windows and Linux users to develop their own USB applications with various development tools (VB/C++/C#.NET/VB.NET/LabVIEW). Therefore, the USB-2068-18 is the perfect choice for you to implement I/O expansion via a plug-and-play USB interface.

Features

10-channel digital input and 8-channel relay output
Dry Contact and Wet Contact Selectable via Wire Connections
Form C Relay Output
Wide Operating Temperature Range
USB Bus Powered
Lockable USB cable
Driver Free

Specifications

CPU Module
Watchdog Timer	1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
ESD (IEC 61000-4-2)	4 kV contact for each terminal 8 kV air for random point

LED Indicators
Status	3 x Power and Communication 8 x Power Relay 10 x Digital Input

Digital Input/Counter
Channels	10
Type	Dry Contact, Wet Contact
Sink/Source (NPN/PNP)	Dry: Source Wet: Sink/Source
ON Voltage Level	Dry: Close to GND Wet: +10 VDC ~ +50 VDC
OFF Voltage Level	Dry: Open Wet: +4 VDC Max.
Max. Counts	32-bit
Frequency	500 Hz
Min. Pulse Width	1 ms
Input Impedance	10 KΩ
Overvoltage Protection	70 VDC

Relay Output
Channels	8 Form C (SPDT-NO, NC)
Contact Rating	AC: 0.25 A @ 250 VAC AC: 0.5 A @ 125 VAC DC: 2 A @ 30 VDC
Operate Time	5 ms (Max.)
Release Time	6 ms (Max.)
Electrical Endurance	2 x 10^5 ops (at 30 V / 2 A)
Mechanical Endurance	1 x 10^8 ops
Surge Strength	Surge Strength
Power on Value	Yes, Programmable
Safe Value	Yes, Programmable

USB
Specification	USB 2.0 Full-Speed (12Mbps)

Power
Consumption	2.3 W (Max.)

Mechanical
Dimensions (mm)	31 x 147 x 126 (W x L x H)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing

Technical

USB-2068-18 USB I/O Module with 10-ch DI and 8-ch Signal Relay datasheet
