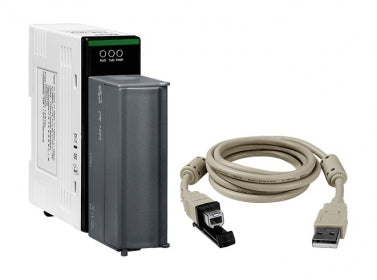

USB-2019/S USB I/O Module with 8-ch Universal Analog Inputs

£213.00; £213.00; (-0%)
Unit price: per

(Price excludes VAT)

USB Based Universal 16-bit Analog Input module (8 channel), for Voltage, 4-20mA and Thermocouple measurement. Includes 1.5m USB cable

Model: USB-2019/S

Quantity:

Subtotal: £213.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

USB-2019/S USB I/O Module with 8-ch Universal Analog Inputs

£213.00

Quantity:

USB-2019/S USB I/O Module with 8-ch Universal Analog Inputs

£213.00

Description
Features
Specifications
Technical
Applications

Description

The USB-2019 provides easy USB plug-and-play operation and accurate measurement for all kinds of automation applications.

Compared with the traditional PC-based card like PCI, PC/104 and ISA cards, users can achieve data acquisition easier and quicker via USB-2019. The USB-2019 is an 8-channel universal analog input module and provides the following features.

Provides over-voltage protection of up to 240 Vrms
Voltage and current input types.
Supports thermocouple devices with J, K, T, E, R, S, B, N, C, L, M and LDIN43710 types.
Accurate thermocouple measurement and automatic cold-junction compensation for each channel.
Open wire detection for thermocouple and 4 ~ 20 mA inputs for each channel.

Using the USB I/O utility, users can configure and test the USB-2019 directly and easily without any coding. The friendly API library is also provided for users to develop their own USB application.

Features

8 Differential Universal 16-bit Analog Input Channels

Thermocouple

Voltage

Current
240 Vrms Overvoltage Protection
Thermocouple and 4~20mA current input provide Open Wire Detection
Individual Channel Configuration
USB 2.0 Full-Speed (12 Mbps)
USB Bus Powered
Lockable USB cable
Driver Free

Specifications

Software
OS Support	Windows XP (32/64 bit), Windows 7 (32/64 bit)

CPU Module
Watchdog Timer	1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
ESD (IEC 61000-4-2)	4 kV contact for each terminal 8 kV air for random point

LED Indicators
Status	3 x Power and Communication

Analog Input
Channels	8 Differential
Type	Voltage Current Thermocouple
Range	Voltage: ±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (External resistor is required) Thermocouple: J, K, T, E, R, S, B, N, C, L, M and L(DIN43710)
Resolution	16 bit
Accuracy	±0.1% FSR
Sampling Rate	10 Hz (Total)
Input Impedance	Voltage: > 400 kΩ, Current: 125 Ω (An external resistor is required)
Common Mode Rejection	86 dB Min.
Common Voltage Protection	100 dB
Overvoltage Protection	240 Vrms
Individual Channel Configuration	Yes
Open Wire Detection	Yes (Software programmable)
Zero Drift	±20 μV/°C
Span Drift	±25 ppm/â„ƒ

USB
Specification	USB 2.0 Full-Speed (12Mbps)

Power
Consumption	1.7 W Max.

Mechanical
Dimensions (mm)	USB-2019: 33 x 107 x 118 (W x L x H) CN-1824: 30 x 84 x 43 (W x L x H)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing

Technical

USB-2019 USB Analog Input Data acquisition module datasheet

Applications

Building automation
Factory automation
Environment control and monitoring
Machine automation
Data acquisition and control
Laboratory equipment & research
