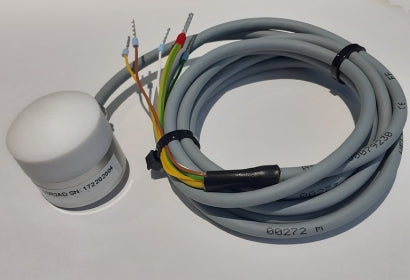

SSR2AD Solar Radiation Sensor

£205.00; £205.00; (-0%)
Unit price: per

(Price excludes VAT)

Solar Radiation Sensor 0-5V / SDI-12 output.

Model: SSR2AD

Quantity:

Subtotal: £205.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

SSR2AD Solar Radiation Sensor

£205.00

Quantity:

SSR2AD Solar Radiation Sensor

£205.00

Description
Features
Specifications
Technical
Applications

Description

The SSR2AD solar radiation sensor uses a photodiode as the sensing element. The device has been designed for constant outdoor use and the radiation is measured on the whole hemisphere with the full sight vision of 180°.

The sensor works great in photovoltaic, food farming, thermal convection and evaporation systems. It is fully compatible with MicroPower Weather Stations/data loggers and devices which allow a 0-5V voltage or SDI-12 input.

The calibration of the sensor is made for natural, unshaded daylight. In case of artificial light, the measured data will be not correct, or the sensor must be recalibrated using appropriate source of light. In most cases the sensor is used to measure solar radiation reaching flat surface. However if required, the sensor can be used in reversed or slanted position. The enclosure is made of anodized aluminum with ingress protection IP67. SSR2AD is suitable for use in every weather condition.

Features

High acccuracy of measurements
Excellent characteristics
IP67 Waterproof enclosure made of anodized aluminium
Output signal 0-5V
Output signal SDI-12
Low power consumption

Specifications

Working temperature -40 …. +60°C
Output signal 0-5V & SDI-12
Supply voltage 3.3-15V DC, allowed ripple voltage - 100mV
Sensing element fotodiode
Radiation intensity range 0 … 1595 W/m2
Sensitivity range 430 – 1100 nm
Accuracy +/- 3%
Sensitivity 3.13mV per W/m2
Response time <1 second
Non-linearity <+/- 1%
Long-term stability <+/-2% yr
Temperature influence on the measurement <+/-0.15%/°C
Ingress Protection (IP) IP67
Weight 138g
Cable length 1m, optional extension

Technical

SSR Solar Radiation Sensor Datasheet

Applications

The calibration of the sensor was made for natural, unshaded daylight.
In case of artificial light, the measured data will be not correct.
In most cases the sensor is used to measure solar radiation reaching a flat surface, however if need be, the sensor can be used in reversed or slanted position.
The enclosure is made of anodized aluminium with ingress protection IP67.
The sensor may be used in every weather condition.
