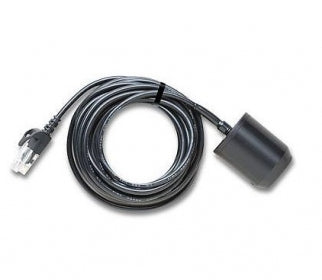

S-LIA-M003 Photosynthetic Light (PAR) sensor with 3m cable

£369.00; £369.00; (-0%)
Unit price: per

(Price excludes VAT)

Photosynthetic Light (PAR) Smart Sensor for Hobo Weather Stations. With 3m cable.

Model: S-LIA-M003

Quantity:

Subtotal: £369.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

S-LIA-M003 Photosynthetic Light (PAR) sensor with 3m cable

£369.00

Quantity:

S-LIA-M003 Photosynthetic Light (PAR) sensor with 3m cable

£369.00

Description
Features
Specifications
Technical
Applications

Description

The Photosynthetic Light (PAR) Smart Sensor is intended to measure light intensity for the frequencies relevant for photosynthesis. This sensor has a measurement range of 0 to 2500 umol/m2/sec over wavelengths from 400 to 700 nm. Enclosed in a anodized aluminum housing with acrylic diffuser and o-ring seal, this model has a 3m cable; a light sensor bracket and light sensor level are recommended.

Features

Measurement range of 0 to 2500 umol/m2/sec over wavelengths from 400 to 700 nm
Plug-n-play smart sensor
Compatible with RX, H21, H22, and U30 family loggers

Specifications

Measurement parameters: average over logging interval, user-defined sampling interval from 1 second
Measurement range: 0 to 2500 umol/m²/sec, wavelengths of 400 to 700 nm
Operating temperature range: -40° to 75°C (-40° to 167°F)
Accuracy: ±5 umol/m²/sec or ± 5%, whichever is greater in sunlight; additional temperature-induced error ±0.75 umol/m²/sec/degree C from 25°C. Cosine corrected 0 - 80 degrees, 360 degree rotation.
Resolution: 2.5 umol/m²/sec
Drift: <±2% per year
Response time:
Housing: anodized aluminum housing with acrylic diffuser and o-ring seal
Dimensions: 4.1 cm height x 3.2.4 cm diameter (1 5/8" height x 1 1/4" diameter)
Approximate weight: 120 g (4 oz)
Cable length: 3 meter (10')
Length of Smart Sensor Network Cable: 3m
