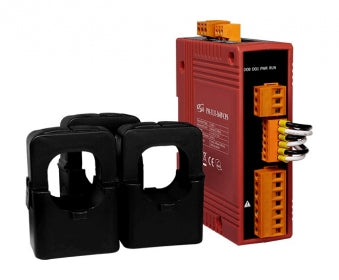

PM-3133-360P-CPS Smart Power Meter, Three phase, CANOpen (300A)

£567.00; £567.00; (-0%)
Unit price: per

(Price excludes VAT)

Compact Three Phase Smart Power Meter, CANopen protocol. 300A CT's (Inside diameter 36 mm; wire lead 4 m) x 3.

Model: PM-3133-360P-CPS

Quantity:

Subtotal: £567.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

PM-3133-360P-CPS Smart Power Meter, Three phase, CANOpen (300A)

£567.00

Quantity:

PM-3133-360P-CPS Smart Power Meter, Three phase, CANOpen (300A)

£567.00

Description
Features
Specifications
Technical
Applications

Description

The PM-3133 series is a range of powerful, cost-effective, advanced Smart Power Meters that gives you access to real-time electric usage for three-phase power measurement.

With its high accuracy (<0.5%, PF=1 ), the PM-3133 series can be applied to both low voltage primary side and/ or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation.

These compact and cost-effective power meters are equipped with revolutionary wired clip-on CT's (various types, supporting input currents up to 400 A). It operates over a wide input voltage range 10 ~ 500 VAC which allows worldwide compatibility. And with 2 relay output channels, it can be linked with sirens or lightings for alarm messages. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.

Features

Bi-directional Energy
True RMS Power Measurements
Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
Current Measurements Up to 300 A with Different CT Ratio
Voltage Measurements Up to 500 V
Clip-on CT for Easy Installation
W Accuracy Better than 0.5% (PF=1)
Total Harmonic Distortion (THD)
Supports CANopen Protocol
Supports 2 Power Relay Output (Form A)
IEC 61010-1 and EN 61010-1

Specifications

AC Power Measurement
Wiring	3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops	Three-phase
Input Voltage	10 ~ 500 V
Input Current	CTØ36 mm (0.3 A ~ 300 A)
Input Frequency	50/60 Hz
W Accuracy	Better than 0.5% (PF=1)
Power Parameter Measurement	True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate	1 Second

CT
Includes CTs	3
Type	Clip
Max. Current	300 A
Inside Diameter	36 mm
Leading Cable	4 m

CANopen
Baud Rate	125 k (default), 250 k, 500 k, 1 M; DIP Switch Selectable
Isolation	3000 VDC
Protocol	CANopen

Power
Input Range	+12 ~ 48 VDC
Consumption	2 W
Alarm Output	Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC

Mechanical
Casing	Plastic
Dimensions (mm)	33 x 127 x 100 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-25 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Technical

PM-3133 Series 3-phase Smart Power Meter Datasheet

Applications

Generator monitoring
Switchgear distribution systems
Energy Management
Power quality analysis
