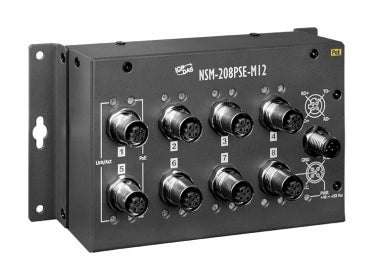

NSM-208PSE-M12 EN50155 8-port M12 Unmanaged PoE Ethernet Switch

£479.00; £479.00; (-0%)
Unit price: per

(Price excludes VAT)

EN50155 8-port M12 Unmanaged PoE Ethernet Switch (RoHS) Includes M12D-4P-IP68 x 8, A-CAP-M12M x 8, M12A-5P-IP68 x 1, A-CAP-M12F x 1 and 4SIX1K0000003 Wall mount

Model: NSM-208PSE-M12

Quantity:

Subtotal: £479.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

NSM-208PSE-M12 EN50155 8-port M12 Unmanaged PoE Ethernet Switch

£479.00

Quantity:

NSM-208PSE-M12 EN50155 8-port M12 Unmanaged PoE Ethernet Switch

£479.00

Description
Features
Specifications
Technical
Applications

Description

The NSM-208PSE-M12 is designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.

The NSM-208PSE-M12 PoE switch provides 8 fast Ethernet M12 ports with 8 IEEE 802.3af compliant PoE ports. The switch is classified as power source equipment (PSE) and provide up to 15.4 W of power per port. The Ethernet switch supports IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provides an economical solution for your industrial Ethernet network.

Features

Each port supports both 10/100 Mbps speed auto negotiation
8 PoE ports with Power Sourcing Equipment (PSE) operation
Over-temperature, over-current and over/under-voltage detection
8-port 10/100 Mbps M12 type connector with IP40 protection
EN50155/50121-3-2/50121-4, and NEMA TS2 compliant
Automatic MDI/MDI-X crossover for plug-and-play
Store-and-forward architecture
Full duplex IEEE 802.3x and half duplex backpressure flow control
Auto-detection of PD (powered devices) and automatic power management

Specifications

LED Indicators
Status	PWR, Link/Act, Power Device is detected

Ethernet
Ports	8 x M12 connector, 10/100Base-TX
Standards	IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Processing Type	Store & forward
MAC Table	1024
Memory Bandwidth	3.2 Gbps
Frame Buffer Memory	512 Kbit
Flow Control	IEEE 802.3x flow control, back pressure flow control
Isolation	1500 Vrms 1 minute
Connector	Female 4-Pin shielded M12 D-coding connector

PoE Technology
PoE Compliance	100% IEEE 802.3af compliant
PoE Power	Up to 15.4 W per port
PoE Operation	Automatic detection and power management
PoE Pin Assignments	V+ (Pin 1, 2), V- (Pin 3, 6) for RJ-45
PoE Disconnect Mode	DC disconnect
PoE Voltage	+46 ~ +48 VDC depending on power input

Power
Reverse Polarity Protection	Yes
Input Range	+46 VDC ~ +53 VDC
Consumption	0.12 A @ 48 VDC without PD loading 3.0 A @ 48 VDC with PD full loading

Mechanical
Casing	Metal
Dimensions (mm)	190 x 100 x 56 (W x L x H)
Installation	Wall Mounting
Ingress Protection Rating	IP40

Environment
Operating Temperature	-40 °C ~ +75 °C
Storage Temperature	-40 °C ~ +85 °C
Humidity	10% ~ 95% RH, non-condensing

Technical

NSM-208PSE-M12 8 port PoE Switch with M12 connectors datasheet
