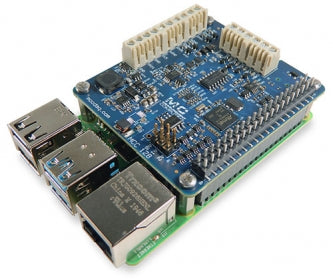

MCC-128 Voltage Measurement 16-bit DAQ HAT for Raspberry Pi
- £150.00
- £150.00
- (-0%)
- Unit price
- per
Voltage Measurement DAQ HAT for Raspberry Pi with 8 SE/4 DIFF analog inputs, 16-bit resolution, and up to 100 kS/s sample rate
Subtotal:
£150.00
Free Shipping Free standard shipping on orders over £500
Free Returns 30 Day Money Back Guarantee
UK company
40 years experience
Talk to our expert engineers
The MCC 128 DAQ HAT provides 8 SE/4 DIFF channels of analog voltage measurement for Raspberry Pi based data acquisition / data logger systems. It features 16-bit resolution and multiple analog input ranges, ideal for making precision measurements.
The MCC 128 maximum sample rate is 100 kS/s per board for taking single point or waveform voltage measurements. Up to eight MCC 128 devices can be stacked - providing up to 64 channels of data and a maximum throughput of 320 kS/s.
All MCC DAQ HATs provide easy-to-use C/C++® and Python™ open-source libraries and examples allowing you to take reliable, quality measurements quickly.
NOTE: Raspberry Pi is not included with the MCC 128.
- 8 SE/ 4 DIFF 16-bit voltage inputs
- Sample rate up to 100 kS/s
- Multiple input ranges ±10, ±5, ±2, ±1 V
- Onboard sample buffers allow high-speed acquisition
- External scan clock I/O
- External digital trigger input
- Screw terminal connections
- Ability to stack up to eight MCC HATs onto a single Raspberry Pi for a maximum throughput of 320 kS/s
Included in the package
- Getting Started Guide
- Hardware required to connect to a Raspberry Pi (connector, standoffs, screws, nuts, and jumpers)
System Requirements:
Raspberry Pi A+, B+, 2, 3, 4 or later
| ANALOG INPUT | ||||
| CHANNELS | RESOLUTION | MAX SAMPLE RATE | ||
| 8 SE/4 DIFF | 16-bit | 100 kS/s | ||
| SAMPLING | RANGES | ISOLATION | ||
| Multiplexed | ±10 V, ±5 V, ±2 V, ±1 V | — | ||
| ANALOG OUTPUT | ||||
| CHANNELS | RESOLUTION | SPEED | ||
| — | — | — | ||
| DIGITAL I/O | ||||
| CHANNELS | COUNTER/TIMERS | ENCODER | ||
| — | — | — | ||
| SOFTWARE | POWER | |
| OS SUPPORT | DRIVERS | POWER |
| Linux®, Raspbian® | DAQ HAT Library™ | Provided by Rpi |
