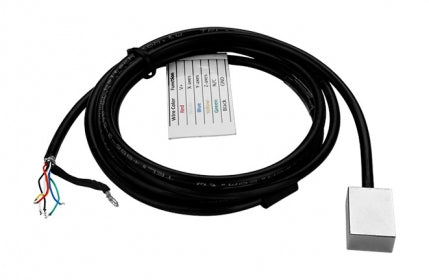

iSN-703-F1-L015 3-axis MEMS Accelerometer
iSN-703-F1-L015 3-axis MEMS Accelerometer

iSN-703-F1-L015 3-axis MEMS Accelerometer

£356.00
£356.00
(-0%)
(Price excludes VAT)
3-axis accelerometer, Range 18g, Sensitivity 400mV/g, Frequency up to 1 kHz, includes 1.5 m cable.
Model: iSN-703-F1-L015
Subtotal: £356.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

iSN-703-F1-L015 3-axis MEMS Accelerometer

iSN-703-F1-L015 3-axis MEMS Accelerometer

£356.00
iSN-703-F1-L015 3-axis MEMS Accelerometer

iSN-703-F1-L015 3-axis MEMS Accelerometer

£356.00
Description

iSN-703-F1-L015 is a high sensitivity accelerometer, and it is also a triaxial accelerometer that simultaneously measures vibration in three orthogonal axes. This sensor is designed primarily for vibration analysis applications.

src=

Features
  • 3 wire voltage accelerometer
  • Triaxial design
  • Measuring range is ±18g
  • Frequency response ranges from 10Hz to 1kHz
Specifications
Vibration Measurement
Axes 3
Sensor Type MEMS
Amplitude Range ±18g
Frequency Range 10Hz~1KHz
Sensitivity 400mV/g per axis
Bais Voltage 10±0.5VDC
Power
Input Range 22~26VDC,3mA
Mechanical
Dimensions (mm) (15±0.05) x (21±0.05) x (8.5±0.05) (W x L x H)
Cable
Length 1.5m



Technical

iSN-701/703 Accelerometer datasheet

Applications
