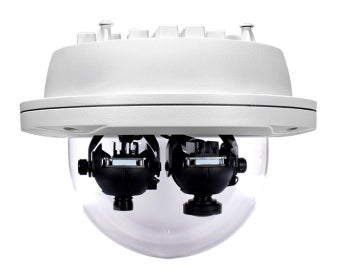

iCAM-760D Dual Lens Panoramic Dome Network Camera with 7.3MP and 360°/180° Panoramic View
iCAM-760D Dual Lens Panoramic Dome Network Camera with 7.3MP and 360°/180° Panoramic View

iCAM-760D Dual Lens Panoramic Dome Network Camera with 7.3MP and 360°/180° Panoramic View

£1,300.00
£1,300.00
(-0%)
(Price excludes VAT)
Dual Lens Panoramic Dome Network Camera with 7.3MP and 360°/180° Panoramic View, IP66, PoE, 2-way audio
Model: iCAM-760D
Subtotal: £1,300.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

iCAM-760D Dual Lens Panoramic Dome Network Camera with 7.3MP and 360°/180° Panoramic View

iCAM-760D Dual Lens Panoramic Dome Network Camera with 7.3MP and 360°/180° Panoramic View

£1,300.00
iCAM-760D Dual Lens Panoramic Dome Network Camera with 7.3MP and 360°/180° Panoramic View

iCAM-760D Dual Lens Panoramic Dome Network Camera with 7.3MP and 360°/180° Panoramic View

£1,300.00
Description

Panorama and detail, iCAM-760D dual lens camera provides a professional single camera solution.

Integrated with Dual 5-Megapixel sensors, one equipped with f 1.05 mm non-linear fisheye lens offers 180/360 degree dewarped image (single or multiple). For the other sensor, lens is 6, 8, 12, 16 mm optional. Dual sensors gimbals work independently and can be configured to almost any direction, and dewarping algorithms are 180/360 degree selectable depends on fisheye lens configuration. Wide Dynamic Range and IR cut removable are available for both sensors.

iCAM-760D offers a professional and efficient solution for commercial, industrial, and public areas.

Features
  •  x 5 Megapixel Progressive CMOS Sensor
  • Smooth 15 fps @ High 7.3 Megapixels Resolution (3840 x 1920)
  • H.264/MJPEG Dual Codec
  • 1.05 mm non-liner Fisheye Lens + 6/8/12/16 mm Fixedfocal Lens
  • Removable IR Cut, Day & Night Function for Both Sensors
  • eWDR Image Enhancement for Extreme Lighting Condition (too Bright/Dark)
  • Various Display Modes Selectable for Different Applications
  • ePTZ, Auto Pan, Auto Patrol Function on Fisheye Lens
  • Two-way Audio
  • Built-in MicroSD Card Slot, support SDHC/SDXC 64GB or above
  • Weather-proof IP66-rated Outdoor Housing
  • Built-in 802.3af Compliant PoE
  • ONVIF 2.2 Compliant for interoperability
Specifications
Alarm and Event
Alarm Events Digital output, Files uploaded via HTTP, SMTP, FTP and NAS server
Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification
Camera
Aperture · Fixed-Focal Lens Type: F1.6, Fixed-IRIS
· Panoramic Lens Type: F2.8, Fixed-IRIS
Field of View · Horizontal angle of view: 54°/41°/28°/22°
· Angle of view: 186±4° (D/H/V)
Image Sensor 2 x 1/2.5”, CMOS
Lens · Fixed-Focal Lens Type: f = 6/8/12/16 mm
· Panoramic Lens Type: f = 1.05 mm
Max. Resolution 7.37 MEGA: 3840 x 1920 @ 15fps
Audio
Capability Audio input/output (full duplex)
Network
Protocol HTTP, HTTPS, TCP/IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, UPnP, ONVIF (Profile S), Multicast
ONVIF Ver. 2.2 and above
Video
Streams 2 simultaneous streams
Stream 1: 3840 x 1920 @ 15fps
Stream 2: 480 x 240 @ 15fps
Ethernet
Ports 1 x RJ-45, 10 Base-T/100 BaseTX Ethernet
Mechanical
Casing Metal
Dimensions (mm) 200 x 153.5 mm
Ingress Protection Rating · Indoor: IP54
· Outdoor: IP66 with optional 6" dome housing
Environmental
Operating Temperature Starting: -10°C ~ 50°C
Working: -40°C ~ 50°C
Humidity 10% ~ 80%



Technical

iCAM-760D Dual Lens Panoramic Dome Network Camera  Datasheet

Applications

WISE Surveillance Solution With iCAM Camera

A general surveillance system on current market usually features separated systems: the camera DVR/NVR as a system, and the I/O monitoring as another system; each system operates independently. For now the DVR/NVR system of the camera usually records video for 24H/7Day without interruption, it requires huge storage space and sufficient network bandwidth; therefore the system implementation fee is usually high. In addition, when playback a certain video, it does not allow to search the suspicious activities of related I/O (temperature, doors and windows switch, water level, etc.) at the same time.

ICP DAS WISE surveillance solution integrates logic control, I/O, camera and data log in one single WISE controller. WISE allows two-way interactions between the I/O and the camera; it enables to record a piece of video or to take images when there is an event triggered by either I/O condition or ROI (Region of Interest) by camera. In this way, the storage size can be reduced significantly and the connection between I/O event and Video/Image can be built for easy query.

Click to view the WISE_iCAM DM.


ICP DAS WISE Surveillance Solution Regular Surveillance Solution
  1. One WISE controller to integrate camera and I/O
  2. Records key video and image, only needs a few storage memory
  3. Two-way interaction between I/O and Video/Image
  4. Can work stand alone or be integrated into a SCADA system
  5. One stop shopping/service for
  • Controller: WISE Series
  • I/O Modules: Various options for RS-485, Ethernet interfaces
  • Camera: Bullet, Fisheye, Dual Lens
  • SCADA: InduSoft
  1. Two independent systems: SCADA & DVR/NVR
  2. Record video 24H/7Days, needs huge storage memory
  3. I/O and Video/Image are independent
  4. Needs a host PC to run the SCADA
  5. Buy from different venders for SCADA, I/O Modules, DVR/NVR
iCAM pic: ICP DAS WISE Surveillance Solution iCAM Pic: Regular Surveillance Solution

Well-thought-out CGI command operation with IP Camera

WISE supports full CGI command operations - CGI command sending and CGI command receiving. The CGI command sending action can be added to the logic edition as part of logic control in response to specific events. The CGI command receiving function enables WISE to receive the CGI commands from other network devices. The content of CGI command received can be used in IF condition statements to trigger the THEN/ELSE actions.
iCAM Pic: Well-thought-out CGI command operation with IP Camera
iCAM Pic: Well-thought-out CGI command operation with IP Camera - 2
