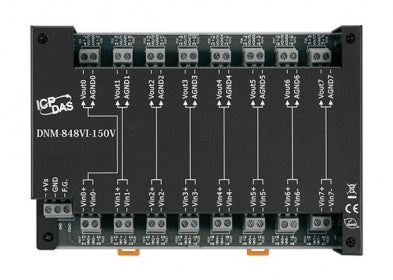

DNM-848VI-150V 8-channel +/- 150V input Signal Conditioner (AC/DC)

£474.00; £474.00; (-0%)
Unit price: per

(Price excludes VAT)

8 channel +/-150V attenuator for AC or DC Voltages. +/- 10V output. Isolated

Model: DNM-848VI-150V

Quantity:

Subtotal: £474.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

DNM-848VI-150V 8-channel +/- 150V input Signal Conditioner (AC/DC)

£474.00

Quantity:

DNM-848VI-150V 8-channel +/- 150V input Signal Conditioner (AC/DC)

£474.00

Description
Features
Specifications
Technical
Applications

Description

The DNM-848VI series are 8-channel AC or DC voltage input attenuator. The maximum input range is from ±10 V / ±80 V / ±150 V can be attenuated to ±10 V. providing 3000 VDC intra-module isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure high voltage signals.

Features

AC/DC Source Input
High Voltage Input Measurement
Linear Attenuation Ratio
High Input Impedance
Easily wire connection

Specifications

EMS Protection
ESD (IEC 61000-4-2)	±4 kV contact for power line, input and output channels, ±8 kV air for random point
Surge (IEC 61000-4-5)	±3 kV for power liner

Analog Input
Channels	8
Type	AC/DC Voltage
Range	±150 Vpp
Accuracy	1% of FSR
Bandwidth	30 KHz
Input Impedance	>1 MΩ
Channel-to-Channel Isolation	3000 VDC
Intra-module Isolation	3000 VDC

Analog Output
Channels	8
Type	AC/DC Voltage
Range	±10 Vpp

Power
Input Range	+10 ~ +30 VDC
Consumption	9.2 W

Mechanical
Casing	Metal
Dimensions (mm)	173 x 122 x 35 (W x L x D)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +75 °C
Humidity	10 ~ 90% RH, Non-condensing

Technical

DNM-848VI 8-channel voltage signal conditioner datasheet
