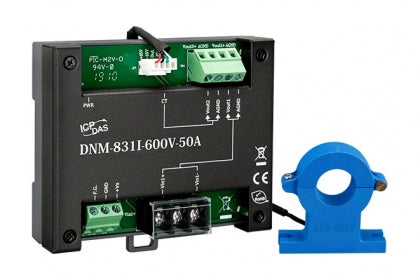

DNM-831I-600V-50A Voltage Attenuator and Current Transformer series (AC/DC)
DNM-831I-600V-50A Voltage Attenuator and Current Transformer series (AC/DC)

DNM-831I-600V-50A Voltage Attenuator and Current Transformer series (AC/DC)

£168.00
£168.00
(-0%)
(Price excludes VAT)
Voltage Attenuator and Current Transformer series for AC/DC input. 600V & 50A .
Model: DNM-831I-600V-50A
Subtotal: £168.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

DNM-831I-600V-50A Voltage Attenuator and Current Transformer series (AC/DC)

DNM-831I-600V-50A Voltage Attenuator and Current Transformer series (AC/DC)

£168.00
DNM-831I-600V-50A Voltage Attenuator and Current Transformer series (AC/DC)

DNM-831I-600V-50A Voltage Attenuator and Current Transformer series (AC/DC)

£168.00
Description

The DNM-831I-600V-50A is 1-channel voltage attenuator and 1-channel current transformer. The maximum voltage input range is from ±600 V can be attenuated to ±10 V and the maximum current input range is from ±50 A can be attenuated to ±10 V. It provides 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high current.


src=



Features
  • High Voltage Input and High Current Input Measurement
  • Three Way Isolation
  • Linear Attenuation Ratio
  • High Input Impedance
  • Easily wire connection
Specifications
EMS Protection
ESD (IEC 61000-4-2) ±4 kV contact for power line, input and output channels, ±8 kV air for random point
Surge (IEC 61000-4-5) ±3 kV for power liner
CT
Type Clip
Inside Diameter Φ21 mm
Leading Cable 1.5 m
Analog Input
Channels High Current: 1
High Voltage: 1
Type AC/DC Current
AC/DC Voltage
Range High Current: ±50 A
High Voltage: ±600 VDC
Accuracy High Current: 1% of FSR
High Voltage: 1% of FSR
Bandwidth High Current: 0 ~ 50 KHz
High Voltage: 20 Hz ~ 20 kHz
Isolation High Current: 2.5 KV @ 50 (60) HZ/1 min
Analog Output
Channels High Current: 1
High Voltage: 1
Type AC/DC Current
AC/DC Voltage
Range • High Current: ±10 VDC or 10 VAC
• High Voltage: ±10 VDC or 10 VAC
Power
Input Range +10 VDC ~ +30 VDC
Consumption 1.8 W
Mechanical
Casing Metal
Dimensions (mm) 103 x 97 x 29 (W x L x D)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 90% RH, Non-condensing



Technical

DNM-831I-600V-50A Voltage attenuator and Current transformer datasheet
