DB-24PRD/24/DIN 24-ch Power Relay Board with DIN-rail Mounting (24V)

£213.00; £213.00; (-0%)
Unit price: per

(Price excludes VAT)

24-ch Power Relay Board with DIN-rail Mounting (24V) Includes: CA-3710 (DB37 Male to Male, 45º, 1M)

Model: DB-24PRD/24/DIN

Quantity:

Subtotal: £213.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

DB-24PRD/24/DIN 24-ch Power Relay Board with DIN-rail Mounting (24V)

£213.00

Quantity:

DB-24PRD/24/DIN 24-ch Power Relay Board with DIN-rail Mounting (24V)

£213.00

Description
Features
Specifications
Technical
Applications

Description

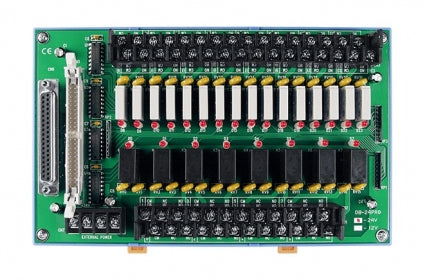

The DB-24PR/DB-24PRD is a 24-channel power relay output board which consists of 8 Form C and 16 Form A electromechanical relays for efficient load switching. The contact rating of each relay is 5 A at 250 VAC or 5 A at 30 VDC. These relays can be switched to ON by applying a 5 V signal from an I/O Card in the PC to the appropriate relay channels.

The DB-24PR/DB-24PRD daughter board contains a single 50-pin OPTO-22 compatible connector, and a single 37-pin D-sub connector or a single 20-pin flat cable connector. The 24 onboard LEDs indicate the output status of the relays, illuminating when their associated relay is activated. To avoid overloading your PC’s power supply, this board requires either a +12 VDC or a +24 VDC external power supply.

Features

8 Form C relays (SPDT) and 16 Form A relays
DB-24PR: Accepts a 50-pin connector to control 8 Form C and 16 Form A relays or accept a 20-pin connector to control 8 Form C and 8 Form A relays
DB-24PRD: Accepts a 37-pin connector and a 50-pin connector to control 8 Form C and 16 Form A relays
LED-indicated relay status
Includes a varistor to protect each channel against high voltage spike
Screw terminals for easy field wiring

Specifications

Relay Output
Channels	8 X FORM C; 16 x FORM A
Type	24V Power Relay
Contact Rating	250VAC/5A, 30VDC/5A
Operate Time	10 ms
Release Time	5 ms
Mechanical Endurance	FORM A : 20 millions operations FORM C: 10 millions operations

Power
Input Range	24 VDC
Consumption	500 mA @ 24 V

Mechanical
Dimensions (mm)	220 mm x 132 mm
Installation	DIN-rail mounting

Environment
Operating Temperature	0 ~ 60°C
Storage Temperature	-20 ~ 70°C
Humidity	5% to 90 % noncondensing
