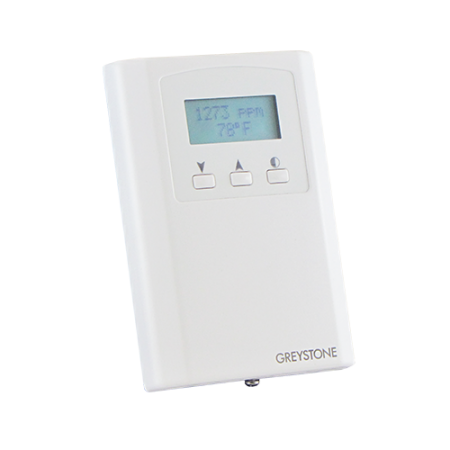

CD2RMCV Carbon Dioxide Sensor, Room, Analog Op, LCD

CD2RMCV Carbon Dioxide Sensor, Room, Analog Op, LCD

£238.00
£238.00
(-0%)
(Price excludes VAT)
Room Carbon Dioxide (CO2) Transmitter with Analog Output and LCD Display
Model: CD2RMCVXXX
Subtotal: £238.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

CD2RMCV Carbon Dioxide Sensor, Room, Analog Op, LCD

CD2RMCV Carbon Dioxide Sensor, Room, Analog Op, LCD

£238.00
CD2RMCV Carbon Dioxide Sensor, Room, Analog Op, LCD

CD2RMCV Carbon Dioxide Sensor, Room, Analog Op, LCD

£238.00
Relay: No
Description

The CD2RMC Carbon Dioxide Transmitter series use a highly accurate and reliable Dual wavelength,Non-dispersive Infrared (NDIR) sensor in an attractive, low profile enclosure for room applications to monitor CO2, levels. A linear analog signal output of 4-20 mA, 0-5 or 0-10 Vdc is provided for connection to a building automation system. Optional features such as manual override and adjustable relay output are available.

Features
  • Menu driven set-up
  • 0-5000 PPM CO2 ranges
  • Patented self-calibration algorithm
  • Guaranteed 5 year calibration interval
  • Easily field calibrated
Specifications
  • GAS TYPE DETECTED Carbon Dioxide (CO2 )
  • SENSOR TYPE Dual wavelength non-dispersive infrared (NDIR)
  • SENSOR ACCURACY ± 50ppm + 3% of reading
  • MEASUREMENT RANGE 0-2000ppm (default), adjustable 1000 - 5000ppm
  • PRESSURE DEPENDENCY <1% of reading / kPa
  • RESPONSE TIME 90 seconds (T90)
  • WARM-UP TIME 1 minute
  • SENSOR COVERAGE AREA 100 m2 (1000ft2 ) typical
  • SENSOR LIFE SPAN >10 years
  • TRANMSITTER ACCURACY ±0.25% of span (including linearity, hysteresis and repeatability)
  • POWER SUPPLY 24 Vdc ±20% or 24 Vac ±10% (non-isolated half-wave rectified)
  • PROTECTION CIRCUITRY Reverse voltage protected and transient protected
  • INPUT VOLTAGE EFFECT Negligible over specified operating range
  • OUTPUT SIGNAL TYPE 4-20 mA (3-wire), 0-5 or 0-10 Vdc (field selectable)
  • CURRENT CONSUMPTION Current: 75 mA @ 24 Vdc max, 150 mA @ 24 Vac max Voltage: 50 mA @ 24 Vdc max, 100 mA @ 24 Vac max
  • OUTPUT DRIVE @ 24 VDC Current: 550Ω max Voltage: 10,000Ω min
  • AMBIENT OPERATING RANGE -10 to 50°C (14 to 122°F), 5 to 90 %RH non-condensing
  • STORAGE TEMPERATURE -30 to 70°C (-22 to 158°F)
  • STORAGE HUMIDITY 5 to 90 %RH non-condensing
  • LCD DISPLAY Units: ppm (CO2 ), °C/°F (optional temperature/setpoint) Range: 0 to 5000ppm, 0 to 50°C (32 to 122°F) Resolution: 1ppm CO2 , (0.1°C/°F for optional temperature sensor) Size: 35mm W x 15mm H (1.4” x 0.6”), 2 lin x 8 character, alpha-numeric Digit Height: 2-line x 8 character
  • OPTIONAL RELAY (2-WIRE OUTPUT) Selectable CO2 high, CO2 low, Temp High or Temp Low Rating: Form A (N.O.), 2 Amps @ 140 Vac / 30 Vdc
  • OPTIONAL OVERRIDE SWITCH (2-WIRE OUTPUT) Front panel pushbutton Rating: 50 mA @ 12 Vdc max
  • ENCLOSURE Material: ABS, White Dimensions: 84mm W x 119mm H x 29mm D (3.3” x 4.7” x 1.15”) Protection: IP30 (NEMA 1)
  • WIRING Screw terminal block (14 to 22 AWG)
  • APPROVALS CE, RoHS
  • COUNTRY OF ORIGIN Canada
Technical

CD2RMC Carbon Dioxide Sensor datasheet
