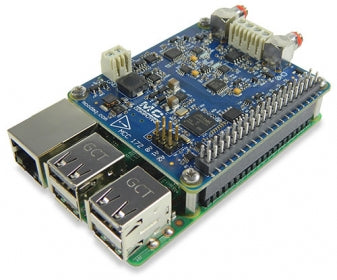

MCC-172 IEPE Measurement DAQ HAT for Raspberry Pi

The MCC 172 is a two channel DAQ HAT for making sound and vibration measurements from IEPE sensors like accelerometers and microphones. It features a 24-bit A/D per channel and a maximum sample rate of 51.2 kS/s/Ch. Up to eight MCC HATs can be stacked onto one Raspberry Pi allowing users to create high-channel count, multifunction solutions of different signal types.

All MCC DAQ HATs include easy-to-use C/C++® and Python™ open-source libraries and examples for taking reliable, quality measurements quickly.

NOTE: Raspberry Pi is not included with the MCC 172.

• Two 24-bit IEPE inputs
• A/D per channel for simultaneous sampling
• Sample rate up to 51.2 kS/s/ch
• One external, digital trigger input
• 10-32 and screw terminal connections (Optional cable ACC-172 is available- 10-32 to BNC cable, 2 pcs)
• Ability to stack up to eight MCC HATs onto a single Raspberry Pi with a max aggregate throughput of 307.2 kS/s

Included in the package

• Getting started guide
• Hardware required to connect to a Raspberry Pi (connector, standoffs, screws, nuts, and jumpers) 2)

System Requirements: Raspberry Pi A+, B+, 2, 3 or later

MCC-172  DAQ HAT for IEPE Measurement datasheet
