CTV-B 0-50 Amp split-core AC current sensor

£201.00; £201.00; (-0%)
Unit price: per

(Price excludes VAT)

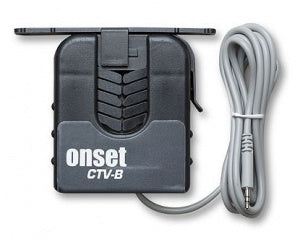

0-50A Split-core AC Current Sensor for use with U12 & ZW series Loggers with external channels.

Model: CTV-B

Quantity:

Subtotal: £201.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

CTV-B 0-50 Amp split-core AC current sensor

£201.00

Quantity:

CTV-B 0-50 Amp split-core AC current sensor

£201.00

Description
Features
Specifications
Technical
Applications

Description

The CTV-B is a split-core AC current sensor responsive over the range of 0 to 50 amps AC for use with U12 or ZW series data loggers with external input channels. With an input current of AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag.

This sensor is not designed for use with intrinsically-safe (IS) loggers; the molded-plastic housing is rated for indoor use per UL508.

Features

UL listed
Sensor power induced from line voltage
Self-gripping split-core design for fast installation

Specifications

Ranges available (AC Amps): 0-20, 0-50, 0-100, 0-200, 0-600
Accuracy with H8: ±5.0% of full scale
Accuracy with U12: ±4.5% of full scale
Response time (from 10% to 90% of amplitude): see table
Input current: AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag
Voltage rating: 600 VAC
Construction and operating environment: Moulded plastic housing for indoor use per UL508; pivoting leg (leg on CTV-D and CTV-E units is fully removable); UL listed.
Cable Length: 1.8m cable (6 foot)
Dimensions: see table

Notes: AC current sensors are not designed for use with Intrinsically Safe (IS) loggers

Part No.	Range (Amps AC)	Approximate Response Time (milliseconds)	Dimensions
Part No.	Range (Amps AC)	Approximate Response Time (milliseconds)	Window	Outer Length	Outer Width	Height
CTV-A	0–20	440	2.8 cm x 2.3 cm 1.1 in. x 0.9 in.	7.4 cm 2.9 in	6.6 cm 2.6 in	2.5 cm 1.0 in
CTV-B	0–50	200	2.8 cm x 2.3 cm 1.1 in. x 0.9 in	7.4 cm 2.9 in	6.6 cm 2.6 in	2.5 cm 1.0 in
CTV-C	0–100	100	2.8 cm x 2.3 cm 1.1 in. x 0.9 in	7.4 cm 2.9 in	6.6 cm 2.6 in	2.5 cm 1.0 in
CTV-D	0–200	450	3.8 cm x 3.3 cm 1.5 in. x 1.3 in	9.9 cm 3.9 in	11.9 cm 4.7 in	2.8 cm 1.1 in
CTV-E	0–600	490	7.4 cm x 6.4 cm 2.9 in. x 2.5 in	13.5 cm 5.3 in	15.0 cm 5.9 in	2.8 cm 1.1 in
